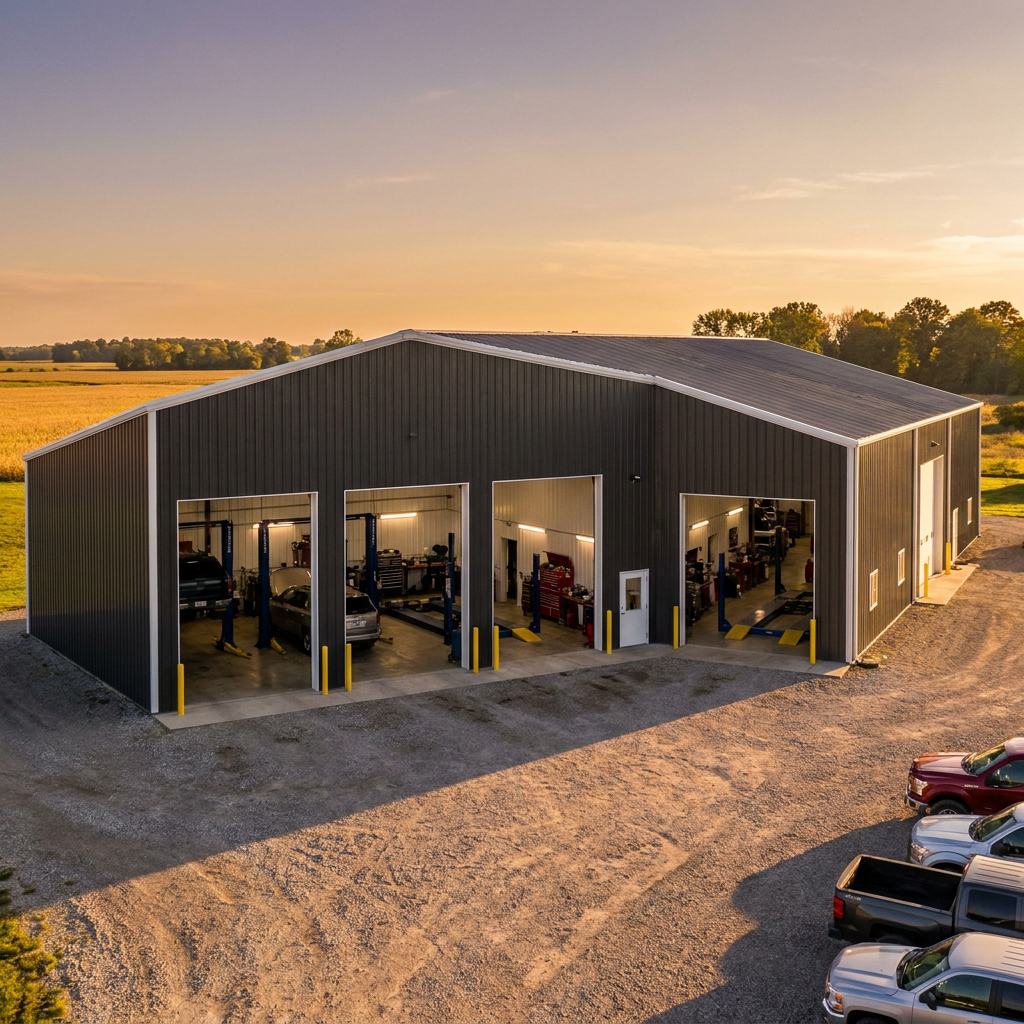

Pole Barn Auto Shop Buildings: A Complete Guide for Indiana

A pole barn auto shop building is one of the most practical and cost-effective ways to get a professional-grade service bay, mechanic garage, or full auto repair facility up and running in Indiana. Post-frame construction gives you wide-open spans without interior load-bearing walls, heavy-duty concrete floors rated for lifts and equipment, and a building envelope that handles everything from oil changes to full engine rebuilds. Whether you are opening a new shop in Tippecanoe County, expanding an existing operation in the Wabash Valley, or building a fleet maintenance facility near West Lafayette, this guide covers the sizing, layout, costs, and code requirements you need to plan your build right.

Why Choose a Pole Barn Auto Shop for Your Indiana Business?

A pole barn auto shop gives you the clear-span interior space that vehicle service work demands, without the cost or complexity of conventional steel framing. Post-frame construction uses engineered laminated columns embedded in the ground or mounted on concrete piers, which eliminates the need for a continuous perimeter foundation and dramatically reduces site prep costs. For mechanics and shop owners, that translates to wider bays, faster construction timelines, and more dollars left over for lifts, compressors, and tooling.

Indiana's flat terrain across counties like White and Carroll makes post-frame sites straightforward to prepare. You are not blasting rock or grading steep hillsides. The column-and-truss system also lets you customize bay widths, eave heights, and door placements without the structural compromises that come with stick-built walls or pre-engineered steel packages. When your service needs change, the building adapts with you instead of fighting you.

Post-frame auto shops are also easier to insulate and condition than bare metal buildings. Steel-skinned post-frame walls accept spray foam or batt insulation between columns, giving you a comfortable shop year-round without the condensation issues that plague all-metal buildings in Indiana's humid summers and cold winters.

What Size Should Your Post-Frame Auto Shop Building Be?

Your post-frame auto shop building size depends on how many bays you need, what equipment you are running, and whether you need customer-facing space. A single-bay hobbyist shop can work at 30×40 feet, but a working commercial operation typically starts at 40×60 and scales up from there. Here is how common shop types break down by size:

• Small independent shop (2-3 bays): 40×60 to 40×80 feet, 2,400-3,200 square feet
• Mid-size service center (4-6 bays): 60×80 to 60×120 feet, 4,800-7,200 square feet
• Fleet maintenance facility: 80×120 feet or larger, 9,600+ square feet
• Specialty shop (tire, alignment, detail): 40×60 to 50×80 feet, 2,400-4,000 square feet

Plan for at least 12 feet of clear space per standard bay width and 14-16 feet for truck or heavy equipment bays. Eave heights of 14 to 16 feet give you clearance for two-post lifts, while 18-foot eaves accommodate four-post lifts and raised truck work. If you have explored our breakdown of post-frame garage pricing in Indiana, you know that every additional foot of height and width has a direct cost impact, so right-sizing the building upfront saves you money.

How Should You Design the Floor Plan for a Pole Barn Service Building?

The best pole barn auto shop layouts separate three zones: the service area, the parts and storage area, and the customer or office area. Getting this right on paper before concrete is poured prevents expensive rework and keeps your technicians productive from day one. Your service bays should run along the longest wall with drive-through capability where possible, and your office or customer waiting area belongs near the entrance, isolated from shop noise and fumes.

Service Bay Layout

Arrange bays so vehicles flow in one direction, from intake to service to completion. Each standard bay needs a 12×24-foot minimum footprint for a sedan on a two-post lift, plus 3-4 feet of clearance on each side for tool carts and technician movement. Alignment bays need 14-foot widths to accommodate rack dimensions and turning radius. Place your air compressor, fluid storage, and electrical panels along the back wall, away from customer access.

Office, Parts, and Storage

A 200-400 square foot office area is standard for a 4-bay shop, including a service counter, a small waiting area, and a restroom. Your parts room should be climate-controlled and adjacent to the service floor, not across the building. Tire storage racks, fluid drums, and waste oil tanks each need dedicated space with proper clearance. If you are running a full commercial operation, our guide on what to know before building a commercial post-frame building covers the planning steps that apply to any business use.

What Concrete and Foundation Specs Does an Auto Shop Require?

Auto shop floors take more abuse than almost any other commercial slab, so your concrete specification is not the place to cut costs. A post-frame mechanic garage needs a minimum 6-inch reinforced slab with 4,000 PSI concrete for general service areas, and 8-inch slabs with rebar reinforcement at lift points. Fiber mesh alone is not enough where concentrated loads from two-post and four-post lifts bear down on anchor bolts.

Lift pad footings should be engineered to the specific lift manufacturer's specs. Most two-post lifts require a 12-inch-deep concrete pad at each column, with #4 rebar in a grid pattern. Four-post lifts distribute weight more evenly but still need a minimum 6-inch slab under the full footprint. Floor drains are required in service bays by Indiana plumbing code and must connect to an oil-water separator before tying into the municipal system or a septic field.

Grade the slab with a slight slope toward drains, typically 1/8 inch per foot. Seal or densify the concrete surface to resist oil penetration and make cleanup manageable. In Montgomery and Fountain counties, soil conditions can vary significantly across a single parcel, so a geotechnical survey before pouring protects you from settling and cracking down the road.

Which Doors and Overhead Access Points Do You Need?

Door selection defines how efficiently vehicles move through your post-frame auto shop building. Every service bay needs its own overhead door, and the size depends on the vehicles you are servicing. Standard passenger vehicle bays use 10×12-foot doors, while truck and fleet bays need 12×14 or 14×14 doors. If you are running a drive-through layout, you need matching doors on both ends of each bay.

Overhead Door Types

Commercial-grade sectional steel doors with high-cycle springs are the standard for auto shops. Look for 25,000-cycle springs at minimum since a busy 4-bay shop can cycle doors 20-30 times per day. Insulated doors with R-12 or higher ratings help maintain shop temperature and reduce energy costs. Electric operators with photo-eye safety sensors and wall-mount controls keep things moving without technicians leaving the bay.

Pedestrian and Emergency Access

You need at least two pedestrian doors for egress, one at the front for customer access and one at the rear or side for emergency exit. Indiana commercial building codes require panic hardware on exit doors in buildings with occupancy above a certain threshold. A separate pedestrian entrance to the office area keeps customers out of the service floor for both safety and liability reasons.

How Do You Handle Ventilation, Electrical, and Plumbing in a Post-Frame Mechanic Garage?

A post-frame mechanic garage needs mechanical ventilation, heavy electrical service, and code-compliant plumbing from the start. These are not afterthoughts. Exhaust fumes, welding gases, and chemical vapors require continuous air exchange that passive ventilation alone cannot provide. Plan your mechanical systems into the building design before column placement is finalized so ductwork, conduit, and piping routes do not conflict with your structural members.

Ventilation Requirements

Install vehicle exhaust extraction systems at each bay with hose reels or fixed tailpipe connections that vent directly outside. General shop ventilation should provide 4-6 air changes per hour for standard service and 10+ air changes per hour for paint or body work areas. Ceiling-mounted fans help circulate conditioned air in winter. Wall-mounted intake louvers with filters bring in fresh air while keeping dust and debris out.

Electrical and Plumbing

A 4-bay auto shop typically needs 200-400 amp three-phase electrical service. Each lift requires a dedicated 220V circuit, and your air compressor may need 50-60 amps depending on the unit. Run conduit in the slab before the pour for floor-mounted equipment connections. Plumbing includes hot and cold water to a parts wash station, restroom facilities, and floor drains connected to an oil-water separator. If you are comparing building methods, our breakdown of commercial post-frame building costs in Indiana includes guidance on how mechanical systems affect total project budgets.

How Much Does a Pole Barn Auto Shop Cost in Indiana?

A pole barn auto shop in Indiana typically costs between $30 and $65 per square foot for the shell, with finished, fully equipped shops ranging from $55 to $100+ per square foot depending on the level of build-out. The wide range reflects the difference between a basic enclosed shell with a slab and a turnkey operation with insulation, HVAC, office space, and lift-ready foundations.

• Basic shell (slab, walls, roof, overhead doors): $30-$45 per square foot
• Insulated and conditioned shop: $45-$65 per square foot
• Fully finished with office, restrooms, and HVAC: $65-$85 per square foot
• Turnkey shop with lifts, compressor, and exhaust systems: $85-$100+ per square foot

For a 40×80 (3,200 sq ft) mid-size auto shop, that puts your total project cost between $96,000 and $320,000. Material costs, site prep, and county permitting fees across Benton and Clinton counties all influence where you land in that range. Our 30/60/10 payment plan structures payments at 30% at signing, 60% at material delivery, and 10% at completion, so your cash flow stays manageable through the build.

Every WVPFCO project starts with a 17-Point Quote Review that locks your scope, specs, and pricing in writing. No change orders, no surprises. And our RapidFrame guarantee backs the schedule with a $500-per-week credit if we miss the agreed completion date.

What Permits and Codes Apply to Auto Shop Buildings in Indiana?

Any commercial auto shop in Indiana requires building permits, and the specific requirements vary by county and municipality. At minimum, you need a building permit covering structural, electrical, plumbing, and mechanical systems. Tippecanoe County, for example, requires plan review through its Area Plan Commission before issuing permits for commercial buildings. Warren and Carroll counties may have different review timelines and fee structures.

Auto repair facilities must also comply with Indiana Department of Environmental Management (IDEM) regulations for hazardous waste handling, waste oil storage, and stormwater management. If you are storing more than 1,100 gallons of waste oil or antifreeze, you need a registered storage area with secondary containment. Floor drains must connect to approved oil-water separators before any discharge.

Fire code requirements include rated separation walls between the office and service areas, fire extinguisher placement per NFPA standards, and potentially a sprinkler system depending on building size and occupancy classification. Your post-frame builder should coordinate with local code officials early in the design phase so nothing delays your permit approval. With 20+ years of experience building across central Indiana, WVPFCO handles this coordination as part of our design-first planning process, with a dedicated project manager as your single point of contact from start to finish.

Frequently Asked Questions

How big should a pole barn auto shop be for a 4-bay operation?

A 4-bay pole barn auto shop typically needs 60×80 feet (4,800 square feet) to accommodate service bays, parts storage, and a small office area. This allows 12-14 feet per bay width with adequate clearance for lifts, tool carts, and technician movement around each vehicle.

What eave height do I need for automotive lifts in a post-frame building?

Most two-post lifts require a minimum 14-foot eave height, while four-post lifts and truck service work need 16-18 feet of clear height. Your post-frame auto shop building eave height should account for the lift at full extension plus overhead lighting and ventilation ductwork.

How thick should the concrete floor be in an auto shop?

Auto shop floors need a minimum 6-inch reinforced concrete slab with 4,000 PSI concrete. Lift pads require 8-12 inch footings with rebar grids engineered to the lift manufacturer's specifications. Cutting corners on slab thickness leads to cracking and settling under concentrated equipment loads.

Do I need an oil-water separator for my pole barn mechanic garage?

Yes. Indiana plumbing code and IDEM regulations require oil-water separators on all floor drains in automotive service areas before discharge to municipal sewer or septic systems. A pole barn auto shop with service bays must include this in the plumbing design from the start.

How long does it take to build a post-frame auto shop in Indiana?

A typical post-frame auto shop building takes 8-16 weeks from breaking ground to occupancy, depending on size, complexity, and interior build-out scope. Shell-only buildings are faster, while fully finished shops with HVAC, electrical, plumbing, and office space take longer. WVPFCO backs every project timeline with our RapidFrame on-time guarantee.
