Pole Barn Foundation Options for Commercial and Ag Buildings in Indiana

Post-frame building foundation options determine the long-term performance, load capacity, and durability of every commercial and agricultural structure you build. The right foundation type depends on your building's use, the weight it needs to support, soil conditions on your site, and local code requirements. In Tippecanoe County and throughout the Wabash Valley, soil composition and frost depth play a major role in which foundation approach delivers the best results. Whether you're building a 60x100 equipment barn or a commercial warehouse in West Lafayette, this guide breaks down every pole barn foundation type so you can make the right call before a single post goes in the ground.

What Are Your Pole Barn Foundation Options for Commercial Projects?

Post-frame building foundation options for commercial projects fall into four primary categories: embedded post (earth-set), concrete pier, perimeter wall, and full concrete slab. Each approach anchors the structural columns differently and serves a distinct range of building uses. The method your builder recommends should match the loads your building will carry and the activity happening inside.

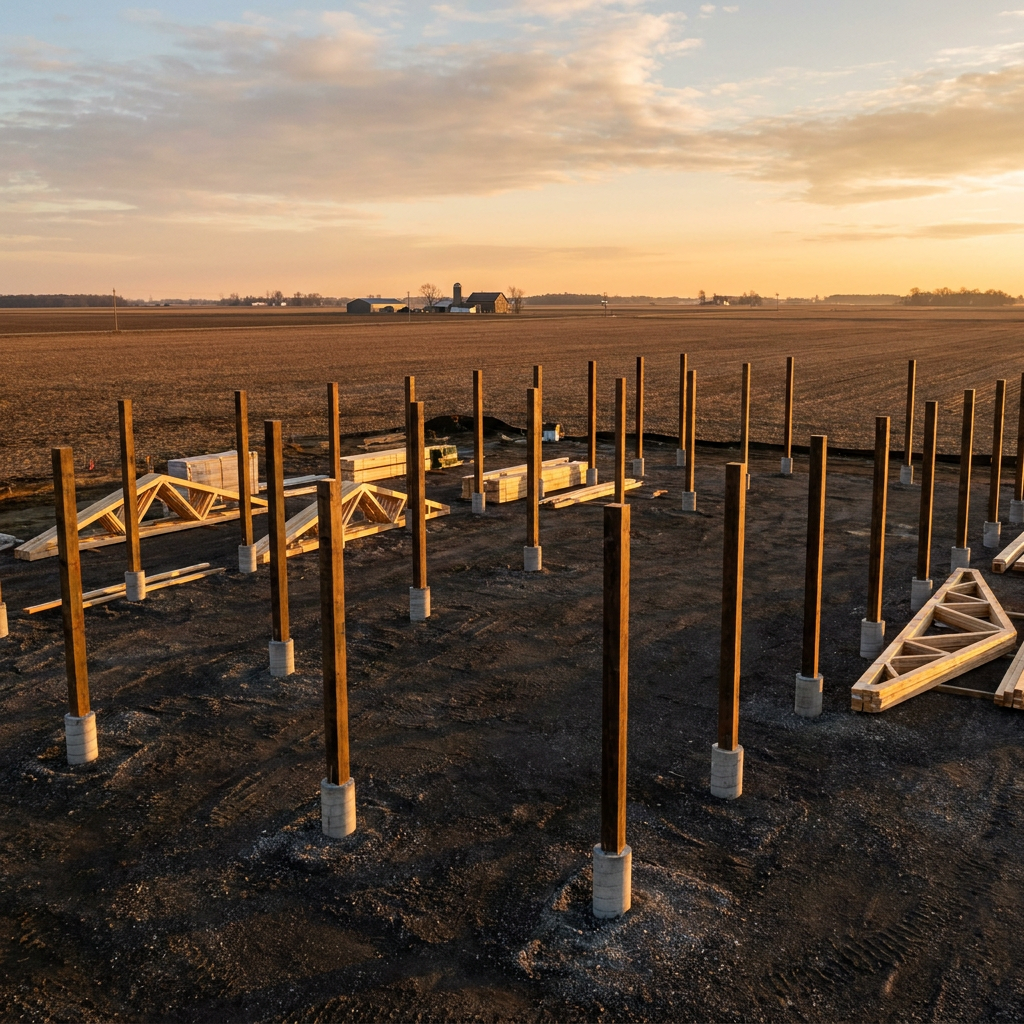

Embedded post foundations set pressure-treated columns directly into the ground with concrete collars or compacted gravel backfill. Concrete pier foundations place pre-cast or poured piers below the frost line, then anchor columns on top. Perimeter wall systems use a continuous concrete footing and short stem wall to support the building's edge while columns sit on independent pads. A full monolithic slab integrates the floor and footing into one pour. Commercial buildings in Indiana frequently combine a slab floor with embedded or pier-style column anchorage depending on code requirements and intended use.

How Does a Pole Barn Foundation Differ From a Traditional Foundation?

A pole barn foundation transfers structural loads through individual columns rather than continuous perimeter walls. Traditional stick-built or masonry construction relies on a full basement or crawl space foundation that supports load-bearing walls along the entire perimeter. In post-frame construction, the columns are the primary structural members, meaning the foundation only needs to anchor those columns and support the floor surface independently.

This difference is what makes post-frame construction faster and more cost-effective. You're not excavating a full-depth perimeter trench or pouring continuous footings around the building's entire footprint. Columns spaced 8 to 12 feet apart each get their own footing or embedment, which dramatically reduces concrete volume and labor. For commercial operators across White and Carroll counties, this translates directly into shorter build timelines and lower site-prep costs. If you're weighing different construction approaches, our guide on what to know before building a commercial post-frame structure covers the broader decision-making process.

Which Post-Frame Foundation Types Work Best for Agricultural Buildings?

Agricultural buildings most commonly use embedded post foundations or concrete pier foundations because they handle the combination of open floor space, moderate loads, and natural ground surfaces that farm operations require. Earth-set columns with concrete collars remain the standard for hay storage barns, livestock shelters, and equipment run-ins where a concrete floor isn't necessary.

For machine sheds and equipment barns that need a hard floor surface, a compacted gravel pad with an embedded post foundation provides excellent drainage and load distribution without the expense of a full slab pour. Buildings that house grain handling equipment or heavy combines often step up to pier foundations with a reinforced slab floor to handle concentrated point loads. Across Benton and Montgomery counties, where agricultural operations dominate the building landscape, most post-frame foundation types can be adapted to match the specific demands of the operation—whether that's an open-sided cattle barn on packed earth or a fully enclosed seed storage facility on a six-inch reinforced slab.

What Does a Concrete Slab Pole Barn Foundation Include?

A concrete slab pole barn foundation includes a compacted sub-base, a vapor barrier, reinforcement mesh or rebar, and a monolithic or independent pour that creates both the floor surface and the column footings. The slab thickness for commercial post-frame buildings typically ranges from four to six inches for general use, with thickened edges and column pads running eight to twelve inches deep to handle concentrated structural loads.

Sub-Base Preparation

Proper sub-base work is the most critical step in any slab foundation. The existing topsoil gets stripped and replaced with compacted aggregate—usually Class 5 or Class 2 road base—in lifts of four to six inches. Each lift gets compacted to 95% or greater density. In central Indiana's clay-heavy soils, skipping this step or under-compacting the sub-base leads to differential settlement and cracked slabs within a few years.

Reinforcement and Vapor Control

A six-mil polyethylene vapor barrier sits between the compacted aggregate and the concrete to prevent moisture migration. Welded wire mesh (typically 6x6 W2.9xW2.9) or #4 rebar on 24-inch centers provides crack control and tensile strength. Commercial buildings expecting forklift traffic or heavy equipment loads often upgrade to fiber-reinforced concrete or tighter rebar spacing. Our resource on commercial post-frame building costs in Indiana details how slab specifications affect your overall project budget.

How Do Soil Conditions in Indiana Affect Your Foundation Choice?

Indiana's soil conditions directly dictate which post-frame foundation types will perform reliably over the life of your building. The majority of Tippecanoe, Clinton, and Fountain counties sit on glacial till soils—a mix of clay, silt, sand, and gravel deposited during the last ice age. These soils vary widely in bearing capacity and drainage characteristics, sometimes within the same parcel of land.

Clay-dominant soils expand when wet and shrink when dry, creating seasonal movement that can shift improperly designed footings. Sandy or gravel-rich soils drain well but may require deeper footings to reach adequate bearing capacity. A basic soil test—typically $300 to $800—tells your builder the soil's bearing capacity in pounds per square foot, its moisture content, and its frost-heave potential. Indiana's frost depth sits at 30 to 36 inches depending on your county, and every column footing or pier must extend below that line to prevent uplift. Builders with 20+ years of experience in this region know which areas tend toward clay and which parcels sit on well-drained glacial outwash—but a soil report removes the guesswork entirely.

What Foundation Options Handle Heavy Equipment and Commercial Loads?

Heavy equipment and commercial floor loads require either a reinforced monolithic slab or a pier foundation system with an independently engineered slab floor. Standard four-inch slabs with wire mesh are not designed for wheel loads from forklifts, loaded semi-trailers, or agricultural equipment weighing 30,000 pounds or more. These applications need an engineered approach.

Reinforced Slab Design for Heavy Loads

A six-inch slab with #4 rebar on 18-inch centers in both directions handles most commercial floor loads, including forklift traffic up to 10,000 pounds. For heavier applications—grain cart traffic, loaded dump trucks, or CNC equipment with high point loads—engineers may specify eight-inch slabs with post-tensioned reinforcement or thickened pads at specific equipment locations. The concrete mix design matters too: 4,000 PSI or higher compressive strength is standard for commercial floors, compared to the 3,000 PSI typically used in residential applications.

Pier Foundations for Maximum Structural Capacity

Concrete pier foundations allow column footings to be sized independently from the floor slab. This means you can pour a 36-inch-diameter, 48-inch-deep pier under each column to handle massive uplift and gravity loads without over-engineering the entire slab. For post-frame warehouse and distribution buildings in Warren and Carroll counties, pier foundations paired with a six-inch reinforced slab deliver the most reliable long-term performance under heavy commercial use.

How Much Do Pole Barn Foundation Types Cost in Indiana?

Pole barn foundation costs in Indiana range from $3 to $12 per square foot depending on the foundation type, soil conditions, and whether you need a finished concrete floor. Here's how the major post-frame foundation types compare on a cost-per-square-foot basis for a typical commercial or agricultural building:

• Embedded post (earth-set, no slab): $3–$5 per square foot, including column embedment, concrete collars, and compacted gravel floor
• Embedded post with concrete slab: $6–$9 per square foot, including sub-base prep, vapor barrier, reinforcement, and four- to six-inch slab
• Concrete pier with slab: $8–$11 per square foot, including independent pier footings and a reinforced slab floor
• Perimeter wall with slab: $10–$12 per square foot, including continuous footing, stem wall, and monolithic slab pour

These ranges reflect 2024–2025 pricing in central Indiana. Site-specific factors like poor soil conditions requiring over-excavation, long gravel haul distances, or code-required engineering stamps can push costs higher. WVPFCO's 17-Point Quote Review locks every foundation line item in writing so you know exactly what you're paying before construction starts. The 30/60/10 payment plan—30% at signing, 60% at material delivery, 10% at completion—keeps your cash flow predictable from first shovel to final walkthrough.

What Foundation Mistakes Should You Avoid on a Pole Barn Build?

The most common pole barn foundation mistakes are skipping soil testing, under-compacting the sub-base, and setting column depth above the frost line. Each of these errors leads to structural problems that are expensive to fix after the building is standing. Prevention costs a fraction of remediation.

Inadequate Sub-Base Compaction

Pouring a slab on poorly compacted fill is the single most frequent foundation failure in post-frame construction. Settlement cracks appear within the first year, and once a slab settles unevenly, the only fixes are mudjacking, slab replacement, or living with the problem. Proper compaction testing during sub-base prep costs a few hundred dollars and prevents thousands in future repairs.

Ignoring Frost Depth Requirements

Indiana building code requires footings to extend below the frost line, which ranges from 30 to 36 inches depending on your location. Columns or piers set at 24 inches will heave during freeze-thaw cycles, racking door frames and cracking slab connections. A builder with dedicated project management and design-first planning—like WVPFCO's single-point-of-contact approach—catches these issues in the engineering phase, not during a January inspection failure. The RapidFrame guarantee backs that commitment with a $500-per-week on-time credit if the project runs behind schedule.

Frequently Asked Questions

What is the best foundation for a commercial pole barn in Indiana?

The best foundation for most commercial pole barns in Indiana is an embedded post or concrete pier system paired with a reinforced concrete slab. The specific post-frame building foundation option depends on your floor load requirements, soil conditions, and local code. Buildings with forklift traffic or heavy equipment typically need a six-inch reinforced slab with engineered pier footings.

Do pole barns need a concrete slab?

Not all pole barns require a concrete slab. Agricultural buildings like hay storage barns, livestock shelters, and open equipment run-ins often use compacted gravel floors with embedded post foundations. Commercial buildings, workshops, and any space with vehicles or equipment on the floor typically require a concrete slab for durability and code compliance.

How deep do pole barn posts need to be in Indiana?

Pole barn posts in Indiana must extend below the frost line, which is 30 to 36 inches depending on your county. Most post-frame builders set columns at 42 to 48 inches deep to provide adequate frost protection and structural embedment. Shallower depths risk frost heave, which damages the building's structural integrity over time.

How much does a pole barn foundation cost per square foot?

Pole barn foundation costs in Indiana range from $3 to $12 per square foot. An earth-set foundation with a gravel floor runs $3–$5 per square foot, while a full concrete slab with pier footings costs $8–$11 per square foot. Post-frame building foundation options at the higher end include perimeter wall systems and engineered reinforced slabs for heavy commercial loads.

Can you pour a concrete slab after a pole barn is built?

Yes, you can pour a concrete slab after the post-frame structure is standing, and many builders actually prefer this sequence. Pouring the slab after the roof is up protects the fresh concrete from rain and direct sun during curing. The trade-off is that working around existing columns requires more careful forming and finishing.
