Pole Barn Hobby Shop Electrical Planning: What to Wire For

Pole barn hobby shop electrical planning is the single biggest factor that separates a building you love working in from one that frustrates you every weekend. Most hobby shop owners in the Wabash Valley and Tippecanoe County area undersize their electrical system during construction, then spend thousands retrofitting later. The right approach is planning your full electrical load before a single post goes in the ground — accounting for every welder, compressor, dust collector, and overhead light you will ever run. This workshop wiring guide walks you through exactly what to wire for so your post-frame hobby shop is ready for serious work from day one.

How Much Electrical Capacity Does a Pole Barn Hobby Shop Need?

A pole barn hobby shop typically needs a minimum 200-amp electrical service, and serious workshops with welders or large compressors should plan for 400 amps. The capacity you need depends entirely on what equipment you plan to run — not the square footage of the building. A 30x40 shop running a table saw and a few lights needs far less than the same footprint running a plasma cutter, a 5HP dust collector, and a 60-gallon air compressor simultaneously.

Start by listing every piece of equipment you own or plan to buy in the next five years. Write down the amperage draw for each. Add those numbers together, then apply the National Electrical Code demand factors your electrician will calculate. For most hobby shops in West Lafayette and the surrounding Carroll and White County areas, 200 amps handles woodworking and light fabrication. If you are running any 3-phase equipment, TIG welders above 200 amps, or multiple high-draw tools at once, step up to a 400-amp service from the start. Running a new service later costs three to five times more than doing it right during construction.

What Size Electrical Panel Should You Install in a Pole Barn Shop?

Install a 42-space electrical panel at minimum, even if you only need 20 circuits today. Panel space is the cheapest thing you will ever buy during construction, and running out of breaker slots five years from now means installing a sub-panel — an avoidable expense that adds complexity to your system. A 42-space or 60-space panel gives you room to grow without compromise.

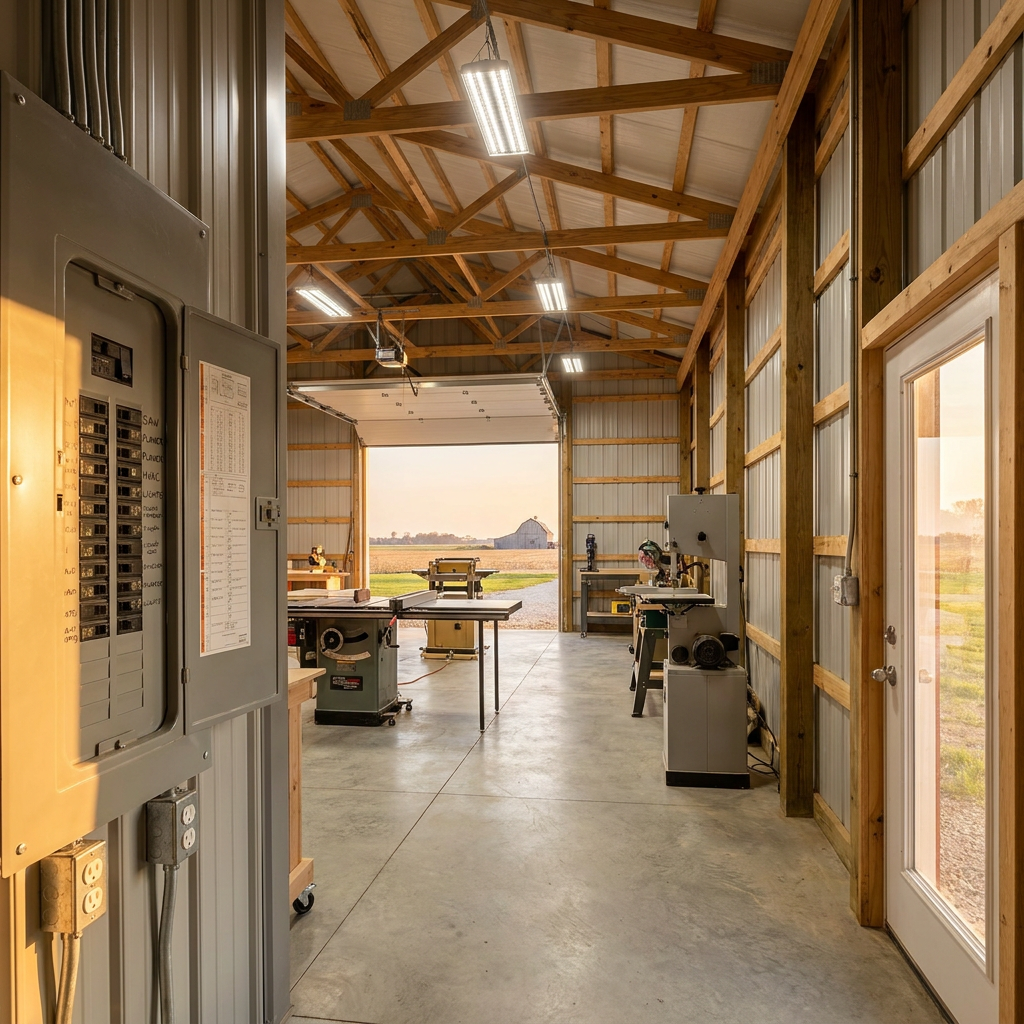

Your panel should be located on an interior wall near the main entry point for your electrical service, mounted at a comfortable working height with 36 inches of clear space in front per NEC requirements. If you are planning your overall hobby shop layout, our guide to designing a post-frame hobby shop workspace covers how to position your electrical panel relative to work zones. In post-frame construction, the open wall cavities between columns make running wire significantly easier than in stick-built structures, which is one reason pole barn electrical installations tend to cost less per circuit.

How Many Dedicated Circuits Does a Pole Barn Workshop Need?

A well-planned pole barn workshop needs 12 to 20 dedicated circuits depending on your equipment list. Every major tool should have its own dedicated circuit — sharing circuits between high-draw equipment causes breakers to trip, voltage drops that damage motors, and frustrating shutdowns mid-project. Dedicated circuits are the backbone of a reliable workshop wiring setup.

Here is a practical circuit breakdown for a typical hobby shop:

• Table saw (3-5 HP): Dedicated 20-amp or 30-amp 240V circuit
• Air compressor (60+ gallon): Dedicated 30-amp 240V circuit
• Welder (MIG/TIG): Dedicated 50-amp 240V circuit
• Dust collector: Dedicated 20-amp 240V circuit
• Bench grinder / belt sander: Dedicated 20-amp 120V circuit
• Overhead lighting: Two separate 20-amp 120V circuits (split the shop in halves)
• General-purpose outlets: Three to four 20-amp 120V circuits across work zones
• Exterior outlets: One dedicated 20-amp GFCI circuit
• Heater or HVAC: Dedicated circuit sized to unit requirements

Label every circuit clearly at the panel. Your future self — or the next owner — will thank you.

What Outlets and Receptacles Should You Wire Into Each Zone?

You should wire outlets every six feet along every wall in your hobby shop, with additional floor-mounted or ceiling-drop outlets in the center of the building for island workbenches and assembly tables. The most common regret hobby shop owners in Montgomery and Clinton County report is not having enough outlets where they actually work. Extension cords across a shop floor are a tripping hazard and a fire risk.

Plan your receptacle types by zone:

• Workbench zone: Duplex 120V outlets every 4-6 feet at counter height (42 inches), plus one 240V outlet for a bench-top welder or grinder
• Machine zone: 240V outlets at each stationary tool location, wired to dedicated circuits
• Assembly area: Ceiling-drop or floor-mount 120V outlets for portable tools
• Finish area: GFCI-protected 120V outlets for spray equipment and detail tools
• Exterior: Weather-rated GFCI outlets on at least two walls for outdoor work

If you are building a woodworking-focused shop, our resource on post-frame woodworking shop layout and design requirements covers how outlet placement ties directly into dust collection routing and machine positioning. Think about your workflow, not just the walls.

How Should You Plan Pole Barn Electrical Lighting for a Workshop?

Plan for 50 to 70 lumens per square foot of general lighting across the entire shop, with 100+ lumens per square foot at dedicated work surfaces like bench tops and machine stations. LED high-bay fixtures are the standard for pole barn electrical lighting because they deliver consistent, flicker-free output, last 50,000+ hours, and use a fraction of the energy that fluorescent or metal halide alternatives consume.

For a 30x50 hobby shop (1,500 square feet), that means approximately 75,000 to 105,000 total lumens for general illumination. Most builders achieve this with eight to twelve high-bay LED fixtures rated at 10,000 to 15,000 lumens each, mounted at the truss or purlin level. Supplement with LED strip lighting or under-cabinet task lights at each workstation.

Lighting Controls That Make a Difference

Wire your lighting on at least two separate circuits so you can illuminate half the shop for quick tasks without powering the full system. Install switching at every entry door — most hobby shops have a walk door and an overhead door, so plan for three-way switches between them. Motion-sensor switches for exterior lights and seldom-used areas save energy. Daylight harvesting through translucent roof panels reduces daytime lighting costs, but never rely on natural light alone for precision work areas.

Do You Need 240V or 3-Phase Power in a Pole Barn Hobby Shop?

You absolutely need 240V single-phase service in any serious hobby shop — most stationary power tools, welders, air compressors, and heaters run on 240V circuits. Three-phase power is a different question. Residential and light hobby shops in Indiana almost never need true 3-phase service, but if you are running commercial-grade equipment like a large CNC router, industrial band saw, or phase-sensitive motor above 5HP, it becomes worth evaluating.

Three-phase service availability varies across Indiana. In the Wabash Valley, most rural properties in Fountain and Warren County have single-phase service at the road. Bringing in 3-phase from the utility can cost $10,000 to $50,000+ depending on distance, and the monthly demand charges add ongoing cost. Rotary phase converters and variable frequency drives (VFDs) offer alternatives for running individual 3-phase machines off single-phase service at a fraction of the cost.

Work with your electrician and your builder early. At WVPFCO, our design-first planning process and dedicated project manager coordinate electrical requirements before the building design is finalized — because service entry location, panel placement, and conduit routing are all structural decisions, not afterthoughts.

What Electrical Safety Features Should Your Workshop Wiring Include?

Every post-frame hobby shop electrical system should include GFCI protection on all outlets within six feet of water sources, all exterior outlets, and any outlets in unfinished areas — which in many pole barn shops means the entire building. Arc-fault circuit interrupters (AFCIs) are required by the National Electrical Code in specific areas and your local inspector will confirm requirements for Benton and Tippecanoe County jurisdictions.

Beyond code minimums, smart workshop wiring includes:

• Whole-shop emergency disconnect: A clearly marked main breaker or disconnect switch accessible from the primary entry door
• Surge protection: A whole-panel surge protector guards sensitive electronics, CNC controllers, and VFDs from line surges common in rural Indiana
• Proper grounding: A dedicated ground rod system with equipment grounding conductors to every outlet — critical in metal-skinned post-frame buildings
• Smoke and CO detectors: Hardwired detectors on a dedicated circuit with battery backup, especially if you run any combustion heating

When budgeting your overall project, understanding how much a post-frame hobby shop costs in Indiana helps you allocate the right percentage to electrical — typically 8 to 15 percent of total build cost depending on complexity.

How Do You Future-Proof Your Pole Barn Electrical System?

Future-proof your pole barn electrical system by installing conduit, not just Romex, in key runs throughout the building. Conduit lets you pull new wire later without opening walls. Run empty conduit from your panel to each corner of the shop, to the ceiling above your main work area, and to any location where you might add a sub-panel, EV charger, or high-draw equipment in the future.

Additional future-proofing strategies include:

• Oversized wire on main feeds: Running #2 copper instead of #6 on your main feeder costs marginally more now but supports a major amperage upgrade later
• EV charger prep: Install a 50-amp 240V outlet on a dedicated circuit near your overhead door — even if you do not own an EV yet
• Smart panel options: Panels with integrated monitoring let you track circuit loads and identify capacity before you hit limits
• Dedicated data circuit: Run a separate 20-amp circuit for networking equipment, security cameras, and a future smart shop setup

The post-frame construction method makes future electrical work far easier than conventional builds. Open stud bays, accessible trusses, and clear-span interiors with no load-bearing walls mean your electrician can route new circuits without demolition. This is one of the core advantages WVPFCO clients across Indiana leverage — a building that adapts as your hobby grows, backed by our 20+ years of experience building shops that last.

Frequently Asked Questions

How much does it cost to wire a pole barn hobby shop in Indiana?

Wiring a post-frame hobby shop in Indiana typically costs $5,000 to $15,000 depending on panel size, circuit count, and the complexity of your equipment. A basic 200-amp service with 15 circuits and LED lighting runs on the lower end, while a 400-amp system with 20+ dedicated circuits, 3-phase conversion, and extensive 240V runs pushes toward the higher range.

What amp service do I need for a pole barn workshop?

Most pole barn hobby shops need a minimum 200-amp service. If you run a welder above 200 amps, a large air compressor, a dust collector, and multiple stationary power tools, a 400-amp service prevents you from ever running short on capacity.

Can I wire my post-frame hobby shop myself in Indiana?

Indiana allows homeowners to perform their own electrical work on owner-occupied properties in some jurisdictions, but all work must pass inspection and meet NEC code requirements. Post-frame hobby shop electrical work involving 200-amp or 400-amp panels, 240V circuits, and multiple dedicated runs is best handled by a licensed electrician to ensure safety and code compliance.

How many outlets should a pole barn workshop have?

A well-planned workshop wiring layout includes outlets every six feet along all walls, with additional ceiling-drop or floor-mount receptacles at island workstations. Most pole barn hobby shops need 25 to 40+ outlets across general-purpose, dedicated, and exterior circuits to avoid relying on extension cords.

Should I install 3-phase power in my hobby shop?

Most hobby shops do not need true 3-phase utility service. Single-phase 240V handles the vast majority of hobby equipment. If you have one or two 3-phase machines, a rotary phase converter or VFD is far more cost-effective than extending 3-phase service to a rural Indiana property.
